AirWerks® Series Turbochargers

The Passion of Power

AirWerks is an independent aftermarket program from BorgWarner. This venture is focused on creating exceptionally high engine performance through forced induction technology. Why do the world’s most prominent auto manufacturers select products from BorgWarner? Simply put, we are the world leader in turbos for high speed, high temperature gasoline engines.

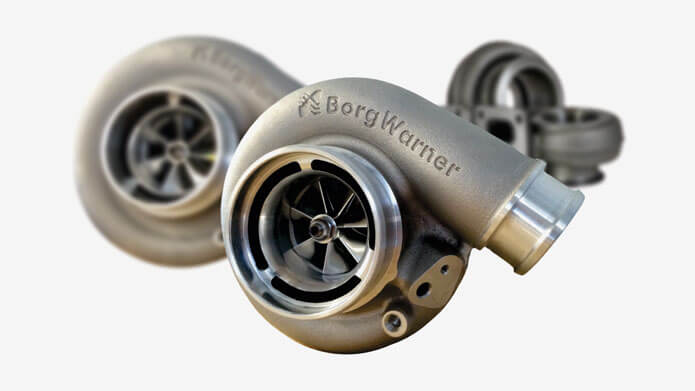

AirWerks Series Range

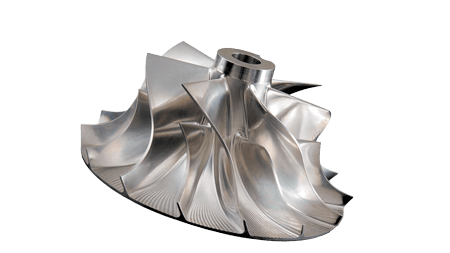

Forged milled compressor wheel (FMW)
Next generation forged milled compressor wheels (FMW)

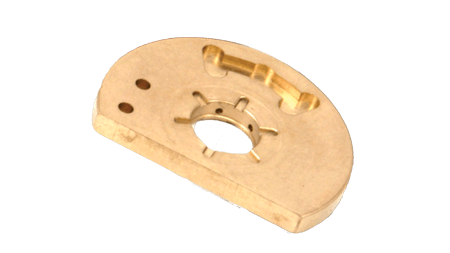

360 Trust Bearing
360 Thrust bearings for increased reliability at higher turbo pressure ratios

Range of units supporting 120 to 1,875 horsepower per turbocharger

SX, SX-E and SX-R Series Turbochargers, Designed to Race

Developed as a joint effort between BorgWarner and GM’s in-house racing program in 2004, AirWerks turbochargers were designed to create reliable and consistent boost for GM’s Pro FWD (front-wheel drive) sport compact racecars.

The AirWerks SX, SX-E and SX-R incorporate serviceable twin hydrodynamic journal bearings with a high-pressure ratio compressor stage utilizing extended-tip technology and a high-efficiency turbine stage.

AirWerks SX-R Supercores

New Product!  BorgWarner Turbo Aftermarket is pleased to announce the release of the AirWerks® S200 SX-R and S300 SX-R series super-cores for performance applications!  SX-R offers the latest innovations and recent updates to the classic SX and SX-E product lines. SX-R is proudly Made in the USA at BorgWarner’s factory located in Arden, NC.

AirWerks SX-R Supercore

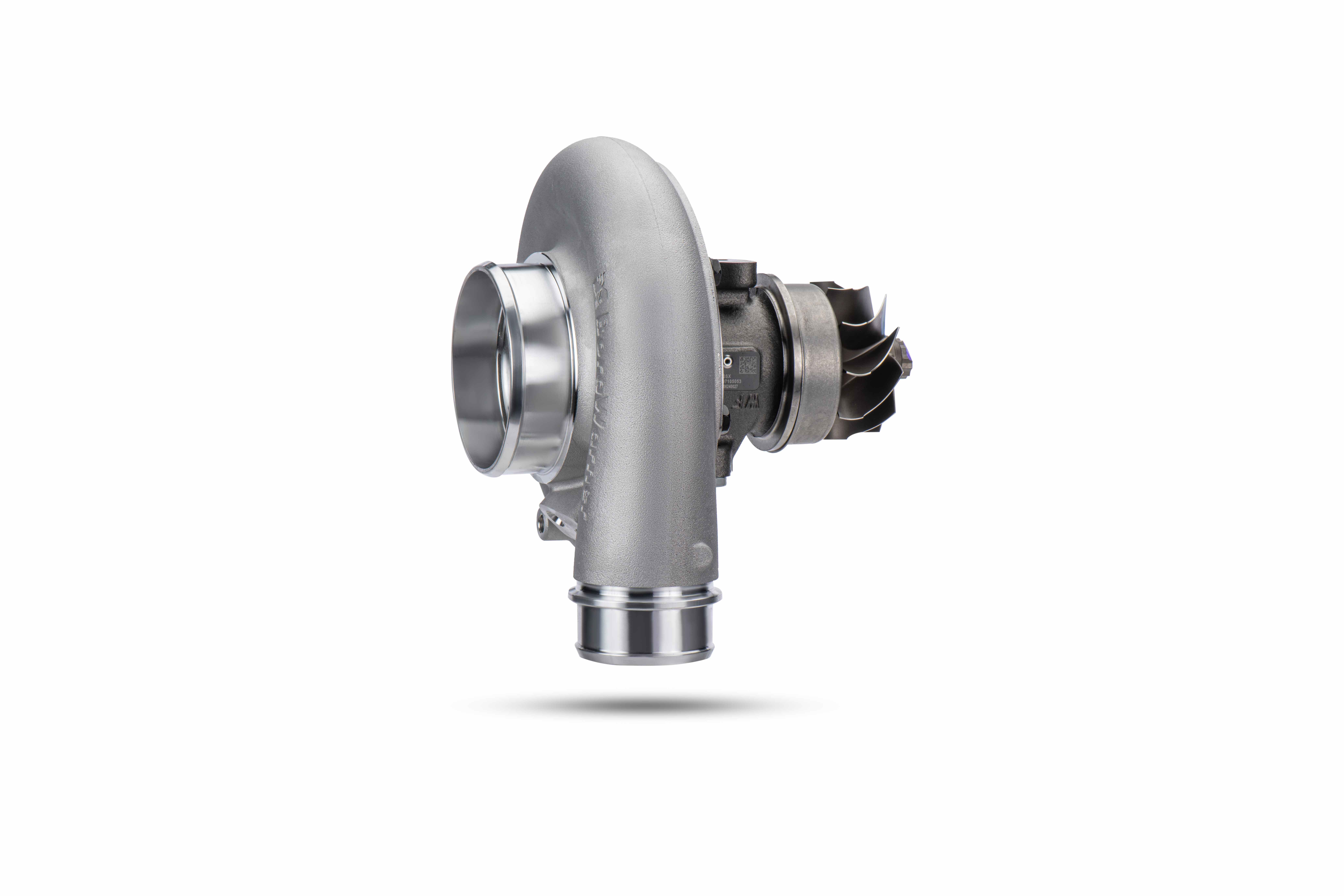

Side view of AirWerks SX-R Supercore
SX-R offers improved aerodynamics thanks to a new compressor wheel architecture which improves aerodynamics, flow, more power, and efficiency across the map width – all without compromising spool-up!  The smaller rotor group offers reduced inertia and faster time to boost than similarly sized rotor groups.  All SX-R supercores include a unique black anodized compressor wheel which adds bling while preventing corrosion.
Part NumberDescriptionSingle Turbo Power RangeTwin Turbo Power Range
12707105086 S200SX-R 58mm 300 to 775 HP 600 to 1,550 HP
13767105020 S300SX-R 68mm 500 to 1100 HP 1,000 to 2,200 HP
13767105022 S300SX-R 64mm 400 to 950 HP 800 to 1,900 HP
13807105053 S300SX-R 68mm 500 to 1100 HP 1,000 to 2,200 HP



S200 SX-R

Supports 300-775 HP

12707105086 S200 SX-R Compressor Map
12707105086 S200 SX-R Compressor Map
Super-Core Part #Comp Wheel O.D (mm)Comp Wheel Inducer Dia. (mm)Turbine Wheel O.D. (mm)Turbine Wheel Exducer (mm)Service Kit
12707105086 76.0058.0069.5661.43318383



S300 SX-R

Supports up to 1,100 HP

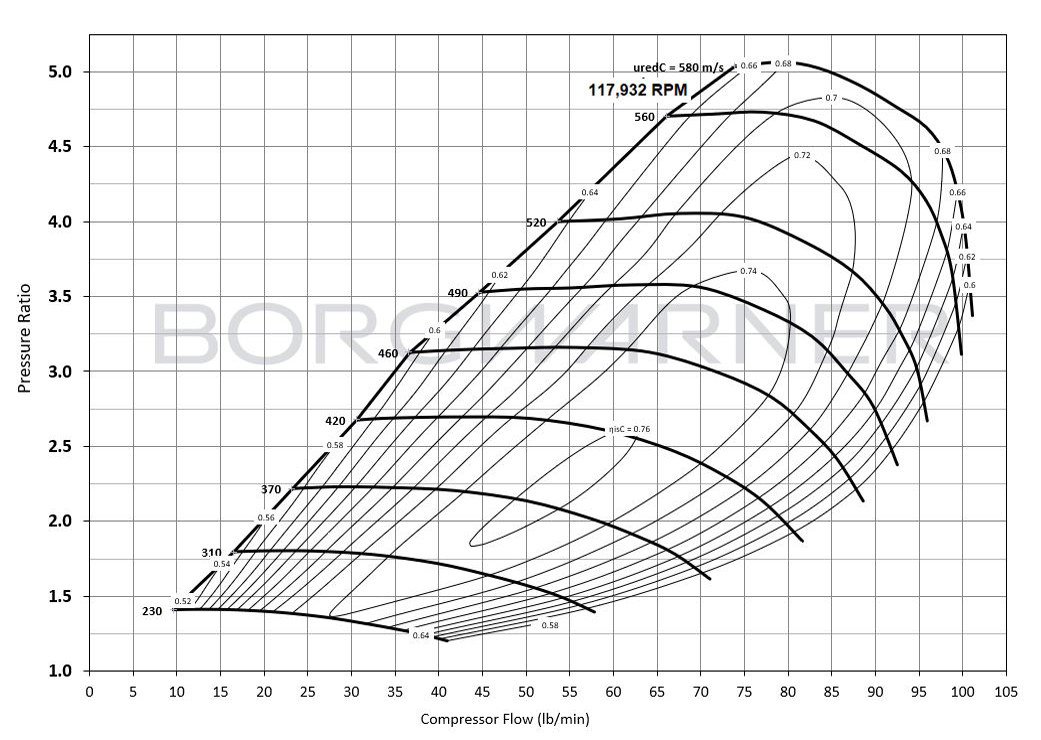

Compressor Map for Airwerks S300 SX-R 2
13767105020 5053 S300 SX-R Compressor Map
Compresssor Map for AirWerks S300 SX-R
13767105022 S300 SX-R Compressor Map
Super-Core Part #Comp Wheel O.D. (mm)Comp Wheel Inducer Dia. (mm)Turbine Wheel O.D. (mm)Turbine Wheel Exducer (mm)Service Kit (360° thrust bearing)
13807105053 88.0068.0079.7673.3713007110005
13767105020 88.0068.0076.2067.5613007110005
13767105022 84.0064.0076.2067.5613007110005

Distributor Search

Locate an authorized BorgWarner distributor

Power Range

Faster spool-up at lower engine speeds. Powerful boost for top-end performance.
Innovative extended-tip technology delivers the increased airflow of a larger compressor wheel with the lower mass of a smaller, low-inertia wheel.

Range of units supporting 120 to 1,875 horsepower per turbocharger

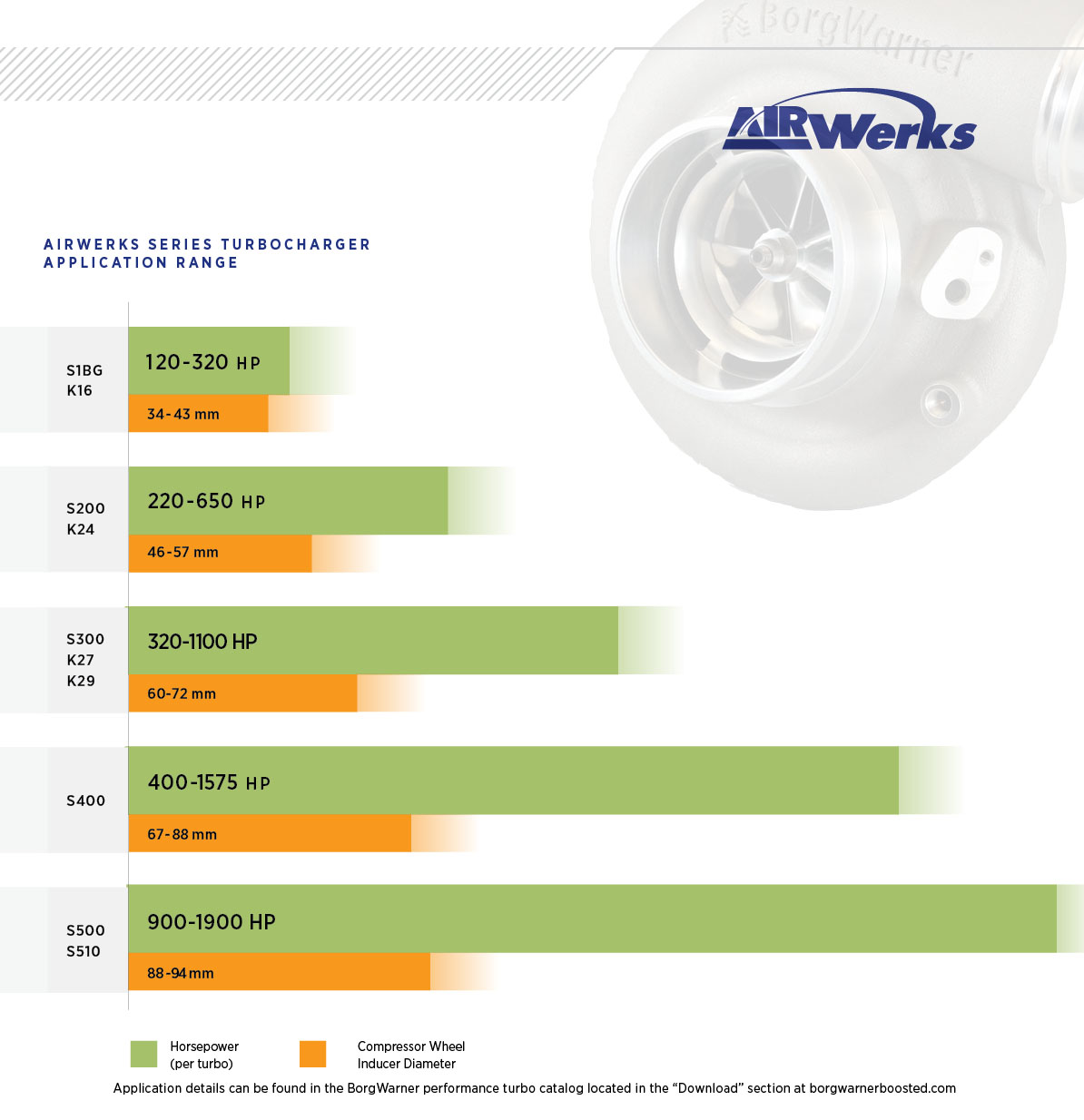

AirWerks Application Range

The chart on the right displays the rated peak horsepower capability for each AirWerks turbocharger (click to enlarge).

Dimensional Reference

Engineered specifically for drag racing, pulling and road racing, AirWerks turbochargers have earned a reputation as robust, brute-force boosting devices.

Click on a model below to see each turbocharger’s outline dimensions and its corresponding compressor map.

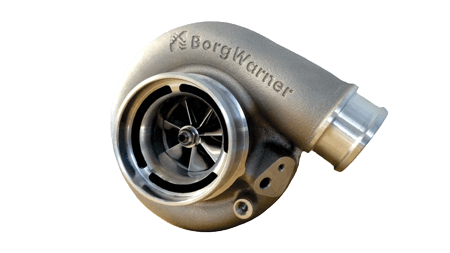

220-650 HP

220-650HP

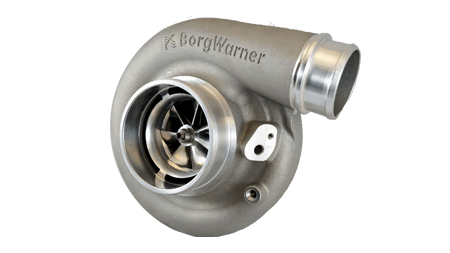

320-1,000 HP

220-650HP

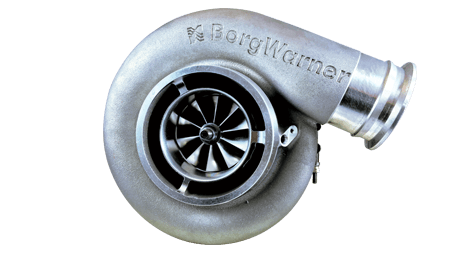

900-1,875 HP

900-1875HP

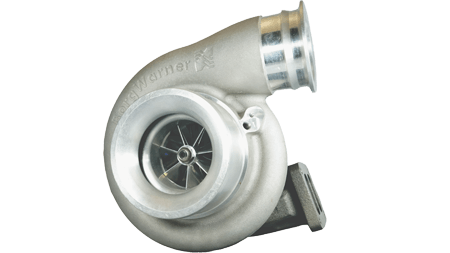

600-900 HP

600-900HP
